Quantum Systems Mandril
Autonomous vehicle technology is moving far beyond self-driving cars. German technology company Quantum Systems has expanded into ground robotics with the Mandrill – a modular unmanned ground vehicle capable of carrying more than 750kg, travelling at up to 100km/h and operating for up to 200km on electric power.

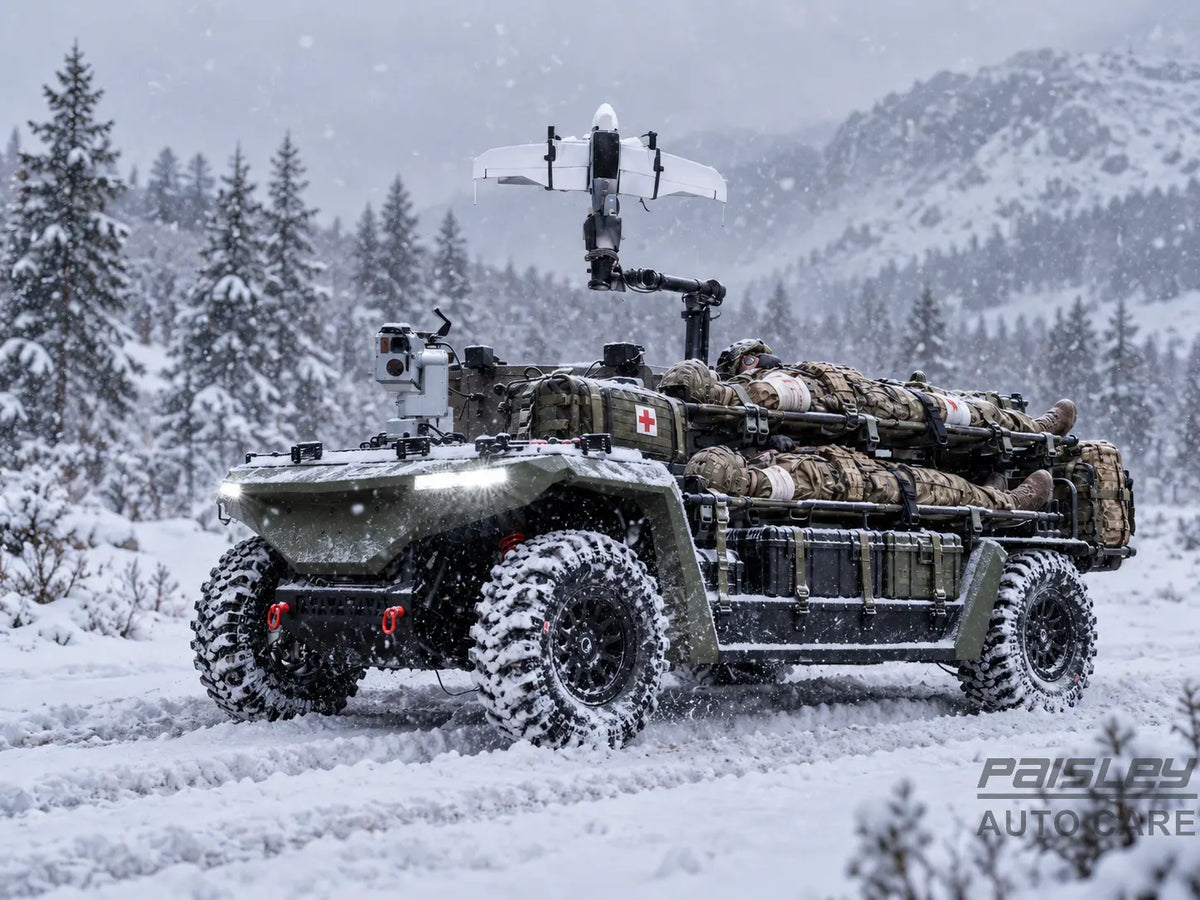

Quantum Systems describes the Mandrill as a modular high-mobility unmanned ground vehicle designed for demanding environments.
What Is the Quantum Systems Mandrill?
The Mandrill is an unmanned ground vehicle developed by Quantum Systems as part of the company's expansion from autonomous aircraft into ground robotics.
Quantum Systems unveiled the platform at Enforce Tac 2026, positioning it as the first member of a wider family of autonomous ground systems.
Rather than designing one vehicle for one particular job, Quantum Systems has built the Mandrill around a modular architecture.
That means the same basic vehicle can be configured with different equipment and payloads depending on its intended role.
Think of It as a Robotic Electric Utility Vehicle
One of the easiest ways to understand the Mandrill is to think of it as a heavy-duty electric utility vehicle without the need for a conventional driver's cab.
Its relatively compact dimensions allow it to carry substantial loads while remaining smaller than many traditional military and industrial vehicles.
Because it doesn't require a driver in normal unmanned operation, the entire platform can be designed around mobility, payload capacity, energy storage and equipment.
Quantum Systems Mandrill Technical Specifications
| Specification | Mandrill |
|---|---|
| Long Version Length | 3.7 metres |
| Short Version Length | 2.9 metres |
| Width | 1.8 metres |
| Weight | 1,190kg |
| Payload | 750+kg |
| Maximum Speed | 100km/h |
| Electric Range | Up to 200km |
| Motor | Dual electric – 150kW |
| Battery Options | 400V 43kWh / 54kWh |
| Drive | Wheel drive / optional track system |
| Water & Dust Protection | IP67 / IP69 |
| Fast Charging | CCS compatible |
Electric Power Makes a Lot of Sense Here
While electric propulsion is usually discussed in terms of reducing emissions in passenger vehicles, there are several other reasons why it can be useful in an unmanned ground vehicle.
Electric motors provide immediate torque, require relatively few moving components and can be controlled very precisely by software.
The Mandrill uses dual electric motors producing a combined rated output of approximately 150kW.
Quantum Systems lists two main battery options: 43kWh and 54kWh, both using a 400-volt electrical architecture.
The company quotes an electric operating range of up to approximately 200km.
It Can Also Act as a Mobile Power Station
One of the more interesting features is that the battery isn't only used to move the vehicle.
Mandrill supports bi-directional charging, allowing electricity stored in its battery to be supplied to other equipment.
Quantum Systems describes this as a mobile energy hub.
Mobile Energy Hub
The system can provide up to approximately 40kW of power for external equipment.
That means a vehicle that would traditionally only consume energy can also become a mobile source of electrical power when required.
Potential uses include powering equipment in remote locations, supporting other autonomous systems and charging smaller electric devices or vehicles.
Wheels or Tracks
The standard Mandrill can use a wheel-based drive system with heavy-duty beadlock wheels.
However, Quantum Systems has also designed the platform to accept an optional track drive system.
This gives operators the ability to adapt the vehicle to different terrain without redesigning the entire platform.
Wheels generally provide better efficiency and higher road speed, while tracks can provide improved mobility on softer or more difficult surfaces.
Autonomous Driving Without GPS?
This is where the Mandrill becomes particularly interesting from a vehicle technology perspective.
Modern autonomous cars typically combine cameras, radar and other sensors with highly accurate mapping and satellite positioning.
But some environments can't guarantee access to a reliable GNSS signal.
Quantum Systems says the Mandrill uses AI-based navigation and advanced mapping to support operation in GNSS-denied environments.
In other words, the vehicle is designed to continue understanding its surroundings and navigating even when conventional satellite positioning isn't available.
The platform is also designed for autonomous driving during both daylight and night-time conditions.
Autonomous, Remote Controlled or Driven
Although it is primarily an unmanned platform, Quantum Systems says the Mandrill can support several operating modes.
Autonomous Operation
The vehicle can use its perception, mapping and navigation systems to carry out movement without a driver physically controlling every input.
Remote Control
Remote operation can provide direct human control where autonomous operation isn't appropriate.
Manned Operation
Quantum Systems also lists optional manned operation, providing further flexibility depending on configuration and application.
Networked Operation
Mandrill integrates with Quantum Systems' wider MOSAIC UXS software environment to coordinate with other unmanned systems.
What Can the Mandrill Be Used For?
The modular platform has been designed around several broad categories of operation.
| Application | What It Means |
|---|---|
| Reconnaissance / ISR | The vehicle can carry optical, thermal and other sensor systems for remote observation and data collection. |
| Logistics | Its 750+kg payload allows equipment and supplies to be transported without requiring a conventional driver. |
| Engineering Support | The modular load area can support specialist equipment required for field engineering tasks. |
| Rescue / MEDEVAC | The platform can be configured to assist with remote casualty transport and rescue support. |
| Towing & Recovery | Heavy-duty towing hardware and a winch allow the platform to support vehicle or equipment recovery roles. |
| Electronic Systems | Its modular payload architecture can accommodate specialist electronic and communications equipment. |
It Can Even Work With Drones
Quantum Systems is best known for unmanned aircraft, so one of the most logical aspects of the Mandrill is its ability to work alongside aerial platforms.
The company lists compatibility with automated drone launch and recovery systems.
This could allow a ground vehicle to transport, deploy, recover and recharge smaller aerial systems as part of one connected robotics platform.
What Is MOSAIC UXS?
The hardware is only one part of Quantum Systems' approach.
Mandrill is designed to integrate directly with the company's MOSAIC UXS software platform.
The idea is that different autonomous machines shouldn't operate as completely separate systems.
Instead, aerial and ground platforms can share data, mission information and situational awareness through a common software environment.
This software-defined approach is becoming increasingly important as autonomous machines move from individual robots towards interconnected fleets.
Designed for Harsh Conditions
A sophisticated autonomous vehicle isn't particularly useful if its sensors, electronics and drivetrain can't survive real-world conditions.
Quantum Systems gives the Mandrill an IP67/IP69 protection rating.
IP67 means equipment is designed to resist dust ingress and temporary immersion in water under defined test conditions.
IP69 relates to resistance against high-pressure, high-temperature water jets.
Quantum Systems also quotes gradient capability of up to 100%, depending on operating conditions and configuration.
Towing and Recovery Capability
Mandrill also incorporates heavy-duty recovery equipment.
The published technical information includes a NATO-compatible trailer connection and integrated rope winch.
Quantum Systems quotes approximately 15,890N of winch pulling force.
This supports the wider idea of the vehicle being a multi-purpose robotic utility platform rather than simply a self-driving sensor carrier.
Why the Mandrill Is Interesting Beyond Defence
The most interesting aspect of vehicles such as the Mandrill isn't necessarily any single application.
It's the underlying technology.
Many of the engineering problems being addressed here also apply to autonomous commercial vehicles:
- Reliable autonomous navigation
- Operating without dependable GPS
- Electric powertrain control
- Vehicle-to-vehicle communication
- Remote monitoring
- High-capacity battery systems
- Bi-directional charging
- Modular vehicle platforms
Similar technology could eventually have applications in mining, agriculture, emergency response, construction and other industries where vehicles routinely operate in difficult or dangerous environments.
From Drones to Autonomous Ground Vehicles
Mandrill also represents a significant change for Quantum Systems itself.
The company built much of its reputation around unmanned aerial systems, including the Vector family.
In February 2026, Quantum Systems formally launched its ground robotics division with Mandrill as the first dedicated ground platform.
The company's stated objective is not simply to build an individual UGV but to establish a wider family of autonomous ground systems integrated with its existing aerial technology.
Already Moving Beyond the Prototype Stage
Mandrill isn't being presented purely as a concept vehicle.
In July 2026, Quantum Systems announced a contract covering ten Mandrill vehicles for a research and development programme in Ukraine.
The programme is intended to provide real-world operational feedback that can feed back into the continuing development of the autonomous system.
Could This Technology Reach Everyday Vehicles?
Not in the form of a Mandrill driving down your local high street.
But some of the technologies being developed for advanced autonomous platforms are likely to influence mainstream vehicles over time.
Modern production cars already use increasingly sophisticated combinations of cameras, radar, mapping, driver-assistance software and high-voltage electrical systems.
The ability for a vehicle to understand its surroundings even when GPS and communications become unreliable is particularly relevant to the future of genuinely autonomous transport.
Bi-directional charging is another example. Vehicle-to-home and vehicle-to-grid technology is already beginning to appear in road cars, using the vehicle's battery as an energy source when required.
Our View
The Mandrill is an interesting example of how quickly the traditional idea of a vehicle is changing.
Mechanically, it has many of the things we'd recognise from an electric off-road vehicle: suspension, wheels, batteries, electric motors, brakes and a high-voltage electrical architecture.
But remove the requirement for a driver and connect that hardware to advanced mapping, sensors, AI and fleet-management software, and it becomes something very different.
With a 750+kg payload, 100km/h maximum speed, 200km electric range and modular wheel or track configurations, Mandrill demonstrates just how capable modern autonomous ground vehicles are becoming.
Frequently Asked Questions
What is the Quantum Systems Mandrill?
The Mandrill is a modular high-mobility unmanned ground vehicle developed by Quantum Systems for autonomous and remotely operated tasks.
How fast is the Mandrill?
Quantum Systems quotes a maximum speed of approximately 100km/h.
How far can the Mandrill travel?
The published electric range is up to approximately 200km, depending on configuration and operating conditions.
How much can the Mandrill carry?
Quantum Systems quotes a payload capacity of more than 750kg.
Is the Mandrill electric?
Yes. The current technical specification lists dual electric propulsion with 43kWh and 54kWh battery options. Quantum Systems also references range-extender and hybrid configurations.
Can it operate without GPS?
Quantum Systems says the Mandrill uses AI-based mapping and navigation technology designed to support operation in GNSS-denied environments.
Can the Mandrill be remotely controlled?
Yes. The platform is designed to support autonomous operation along with optional remote-control and manned operating modes.
Can the Mandrill charge other equipment?
Yes. It supports bi-directional charging and can function as a mobile energy hub, with Quantum Systems listing up to approximately 40kW of external power capability.
Vehicle specifications and technical information: Quantum Systems Mandrill product page and Mandrill technical sheet.
Launch information: Quantum Systems announcement from Enforce Tac 2026.
Development and deployment information: Quantum Systems July 2026 autonomous ground systems announcement.
Specifications may change as the platform continues to develop. Figures in this article reflect information available in October 2026.
```
